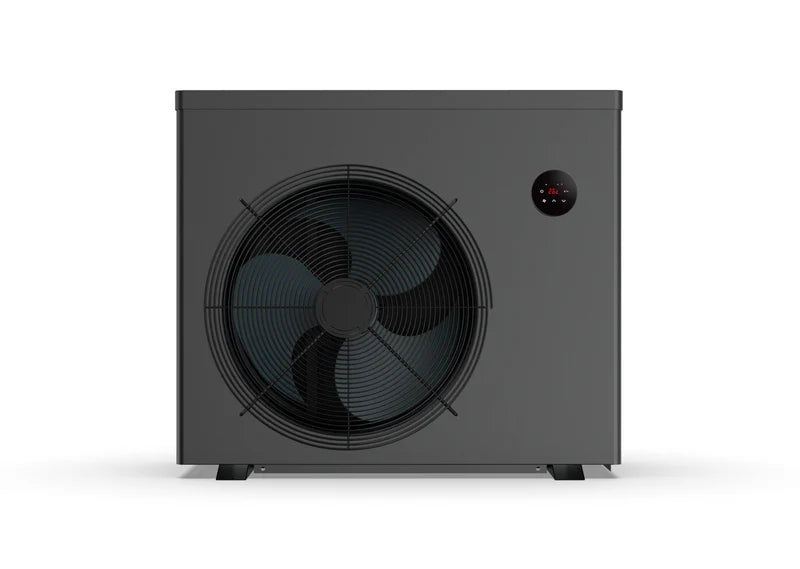

Aquark AquaIntel Air Source Heat Pump

5kw model

Compact and Efficient: With a 5KW heating capacity, this model is ideal for smaller pools or spas, delivering effective heating with a compact design.

Energy Efficiency: Utilizes advanced technology to provide excellent energy efficiency, ensuring low operational costs and reduced energy consumption.

Quiet Operation: Engineered to operate quietly, enhancing your pool or spa experience without disruptive noise.

All-Season Performance: Functions efficiently across a range of external temperatures, providing consistent heating throughout the year.

User-Friendly Controls: Equipped with an intuitive control panel for easy adjustments and monitoring of settings.

Model Information

Model: AquaIntel 5KW

Season: All Year

Installation: Outdoors

Pool Volume: Up to 20 m³

Connection: 50mm

Dimensions (W x D x H): 720 x 400 x 600 mm

Weight: 35 kg

Sound Level: 40 dB

Noise Level (1m): 37.0 - 46.0 dB(A)

Noise Level (10m): 18.0 - 26.0 dB(A)

COP at A15/W25: 5.5

COP at A27/W27: 9.0

Nominal Flow Volume: 2 - 3 m³/h

Refrigerant: R32

Heating Capacity A27/W27: 5.0 kW

Heating Capacity A15/W25: 4.0 kW

Electrical Information

Input Power: 0.80 - 1.50 kW

Power Supply: 220-240V / 50Hz

Current Rating: 3.50 - 6.50 AMP

Maximum Operating Current: 8.0 AMP



7kw model



Powerful Heating: With a 7KW heating capacity, this model is suitable for medium-sized pools and spas, offering robust heating performance to maintain optimal water temperatures.

Energy Efficiency: Utilizes advanced heat pump technology to deliver high energy efficiency, helping reduce operational costs and energy consumption.

Quiet Operation: Designed to operate quietly, enhancing the comfort of your pool or spa experience without excessive noise.

All-Season Performance: Operates effectively across a broad range of external temperatures, ensuring consistent heating year-round.

User-Friendly Controls: Features an easy-to-use control panel that allows for straightforward adjustments and monitoring of the heat pump settings.

Model Information

Model: AquaIntel 7KW

Season: All Year

Installation: Outdoors

Pool Volume: 20 - 40 m³

Connection: 50mm

Dimensions (W x D x H): 850 x 420 x 650 mm

Weight: 50 kg

Sound Level: 42 dB

Noise Level (1m): 39.0 - 48.0 dB(A)

Noise Level (10m): 19.0 - 27.0 dB(A)

COP at A15/W25: 6.0

COP at A27/W27: 10.0

Nominal Flow Volume: 3 - 5 m³/h

Refrigerant: R32

Heating Capacity A27/W27: 7.0 kW

Heating Capacity A15/W25: 5.5 kW

Electrical Information

Input Power: 1.00 - 1.80 kW

Power Supply: 220-240V / 50Hz

Current Rating: 4.50 - 8.00 AMP

Maximum Operating Current: 10.0 AMP
